Drill Rig Rentals in in South Jersey & Greater Philadelphia
Our New Jersey Dealership in Pennsauken rents new SANY drill rigs across South Jersey and Greater Philadelphia. The drill rig rental fleet includes the 42.5 ton SR125MV and the 115.7 ton SR285MV, with max drilling diameters of 4'11" and 7'2", friction kelly bar depths of 134'6" and 308', and 95,883 and 210,205 lbf·ft of rated output torque. Best for foundation piles, CFA piles, deep shafts, and rock drilling.
Daily, weekly, and monthly terms are available on both models, with delivery, setup, and field service across South Jersey and Greater Philadelphia. Rental purchase options are available on every term length.
How Drill Rig Rentals Work
1. Send a Rental Request
Call 609-546-3799 or fill out the rental request form with the job, the machine size, and your dates.
2. Confirm Machine & Terms
We confirm availability, match a drill rig to the job, and set up the rental term.
3. Delivery and Setup
We deliver to jobsites across South Jersey and Philadelphia and set the machine up at drop-off, so it's ready when the crew arrives.
4. Support, Return or Buy
Field service and parts are available during the rental. When the job wraps, return the machine or apply rental payments toward buying it.
Drill Rig Rental Terms
Rent a SANY drill rig for one foundation phase or for the length of the project. Rental terms on the SR125MV and SR285MV are set with our team around the job, and rental purchase options are available on both rigs.
Rent-to-Own a Drill Rig
Rental purchase options apply a portion of your rental payments toward the purchase price, so a rental on a live project can inform the decision to buy.
Service and Parts During Rental
Field service on drill rigs happens at the jobsite, so the rig stays where the work is. SANY parts are available on site at our New Jersey Dealership in Pennsauken.
SANY Drill Rigs for Rent
SY16C Mini Excavator
Operating weight 2 tons
Net HP 8.2 hp
Max dig depth 7' 9"
SY26U Mini Excavator
Operating weight 3 tons
Net HP 19.4 hp
Max dig depth 9' 3"
SY35U Cab Mini Excavator
Operating weight 4 tons
Net HP 23.3 hp
Max dig depth 10'2"
SY35U Canopy Mini Excavator
Operating weight 4 tons
Net HP 23.3 hp
Max dig depth 10'2"

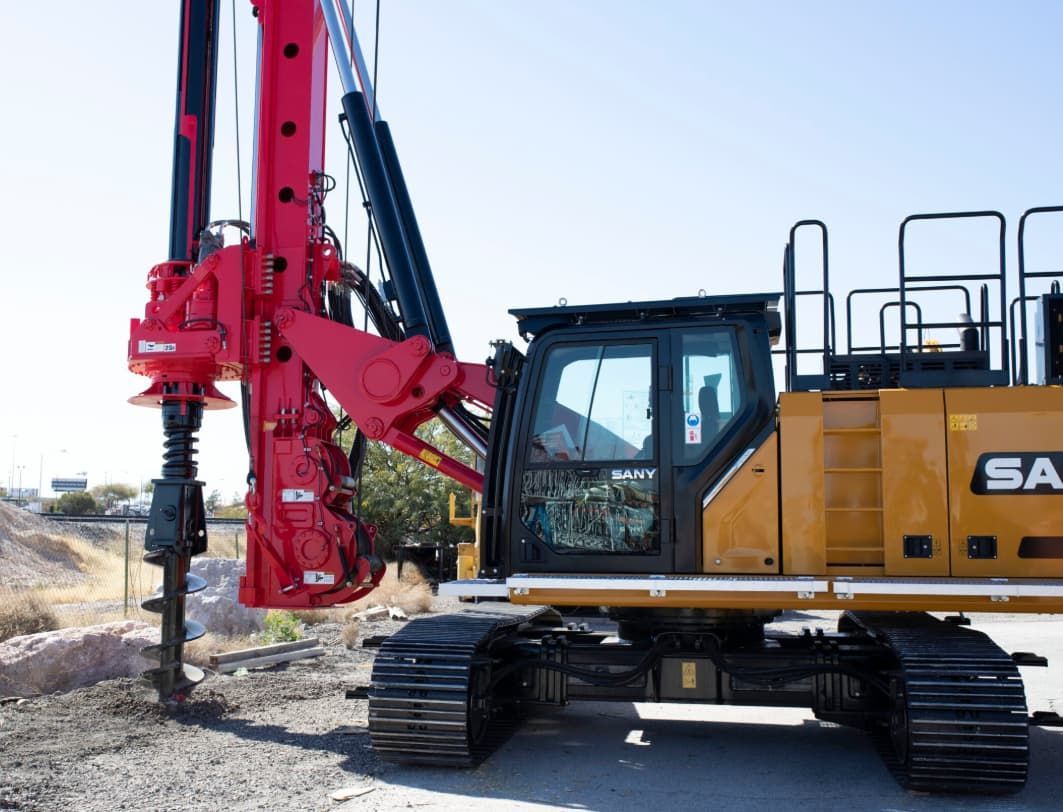

Rent a 42.5 Ton Drill Rig: SANY SR125MV
To rent a 42.5 ton drill rig for foundation piles, CFA piles, and sites with overhead restrictions, ask for the SANY SR125MV. The SR125MV weighs 85,098 lb, runs a 200 hp Cummins B4.5 engine, and drills 4'11" diameter holes to 134'6" with a friction kelly bar.
Low headroom mode drills to 65'7" at a 31'6" overall height, and CFA mode drills 2'11" diameter holes to 70'7". The SR125MV moves on a single truck, so delivery is one load.
Best for: Foundation piles, CFA piles, low headroom sites, and jobs that need single-truck delivery.
Rent a 115.7 Ton Drill Rig: SANY SR285MV
To rent a 115.7 ton drill rig for deep and large-diameter shafts and rock drilling, ask for the SANY SR285MV. The SR285MV weighs 231,485 lb, runs a 450 hp Cummins X12 engine, and drills 7'2" diameter holes to 308' with a friction kelly bar.
A multi-speed rotary that runs from 5 to 27 rpm adjusts to ground conditions and excels at rock drilling, and CFA mode drills 3'11" diameter holes to 88'7". The SR285MV ships on three trucks and typically assembles in under a day.
Best for: Deep and large-diameter shafts, rock drilling, and CFA piles.
Frequently Asked Questions about SANY Road Drill Rigs
What size drill rig should I rent?
Start with hole diameter and depth. The 42.5 ton SR125MV drills up to 4'11" diameter holes to 134'6", and the 115.7 ton SR285MV drills up to 7'2" diameter holes to 308'. Describe the job and the ground conditions and we'll recommend a rig.
Can a rented drill rig handle rock?
The SR285MV has a multi-speed rotary that adjusts to ground conditions and excels at rock drilling. Send us the ground conditions for your site and we'll confirm which rig fits.
How are drill rig rentals delivered?
We deliver drill rigs to jobsites across South Jersey and Greater Philadelphia. The SR125MV moves on a single truck at 43'10" long, 8'5" wide, and 11'4" high, and the SR285MV ships on three trucks and typically assembles in under a day. Include the site address and access details with your request.
Can I apply my rental toward buying a drill rig?
Yes. Rental purchase options apply a portion of your rental payments toward the purchase price. Apply for financing or ask about RPO terms when you request your rental.
Do you service drill rigs on the jobsite?
Yes. Our technicians handle field service on drill rig rentals at the jobsite and are trained on SANY hydraulic and undercarriage systems. SANY parts are available on site at our New Jersey Dealership in Pennsauken. Contact our parts and service team for support.
CONTACT SANY of Pennsauken To Rent a Mini Excavator
SANY of Pennsauken rents mini excavators on daily, weekly, and monthly terms across South Jersey and Greater Philadelphia. Tell us the job, the machine size, and your dates, and our team will confirm availability.
Mini Excavator Page
We will get back to you as soon as possible.
Please try again later.
Which Drill Rig Should You Choose For Your Project
SANY drill rigs handle foundation drilling across South Jersey and Greater Philadelphia, from CFA piles to deep rock shafts.
Drill Rig Rentals for Foundation Piles
Foundation pile work often runs in phases, and a rental covers a phase without leaving a rig to own afterward. The SR125MV drills 4'11" diameter holes to 134'6" with a friction kelly bar, or 101'8" with an inter-locking kelly bar, with 95,883 lbf·ft of rated output torque from a 200 horsepower Cummins B4.5 engine. Rental purchase options are available if the rig keeps working past the first project.
Drill Rig Rentals for Deep and Large-Diameter Shafts
A single deep shaft package can call for a large rig on one project and no other. The SR285MV drills 7'2" diameter holes to 308' with a friction kelly bar, or 200' with an inter-locking kelly bar, and delivers 210,205 lbf·ft of rated output torque. A 56'1" stroke and a 230 ft/min main winch line speed move the kelly bar through deep holes, and the SR285MV ships on three trucks and typically assembles in under a day.
Drill Rig Rentals for CFA Piles
CFA piles are drilled with a continuous flight auger and filled through the hollow stem as the auger comes out, so a rental rig needs the diameter and depth the pile design calls for. In CFA mode the SR125MV drills 2'11" diameter holes to 70'7", and the SR285MV drills 3'11" diameter holes to 88'7". Send us the pile diameter and depth and we'll recommend the SR125MV or the SR285MV.
Drill Rig Rentals for Rock Drilling
Rock drilling on a rental starts with matching the rotary to the ground. The SR285MV has a multi-speed rotary that runs from 5 to 27 rpm, adjusts to ground conditions, and excels at rock drilling, with 210,205 lbf·ft of rated output torque. Send us the ground conditions for your site before the rental starts and we'll confirm the rig.
Drill Rig Rentals for Sites With Overhead Restrictions
Overhead lines and structures can limit rig height on a rental site. Low headroom mode on the SR125MV drills to 65'7" at a 31'6" overall height, and the SR125MV moves on a single truck at 43'10" long, 8'5" wide, and 11'4" high. Include the overhead clearance with your rental request and we'll confirm the rig fits.
Drill Rig Rentals for Project Overflow
When a drilling job lands and your own fleet is already committed, a drill rig rental fills the gap for as long as the work runs. The SR125MV and SR285MV both offer kelly bar and CFA drilling and both come with rental purchase options. The SR125MV arrives on a single truck, and the SR285MV arrives on three trucks and typically assembles in under a day.
