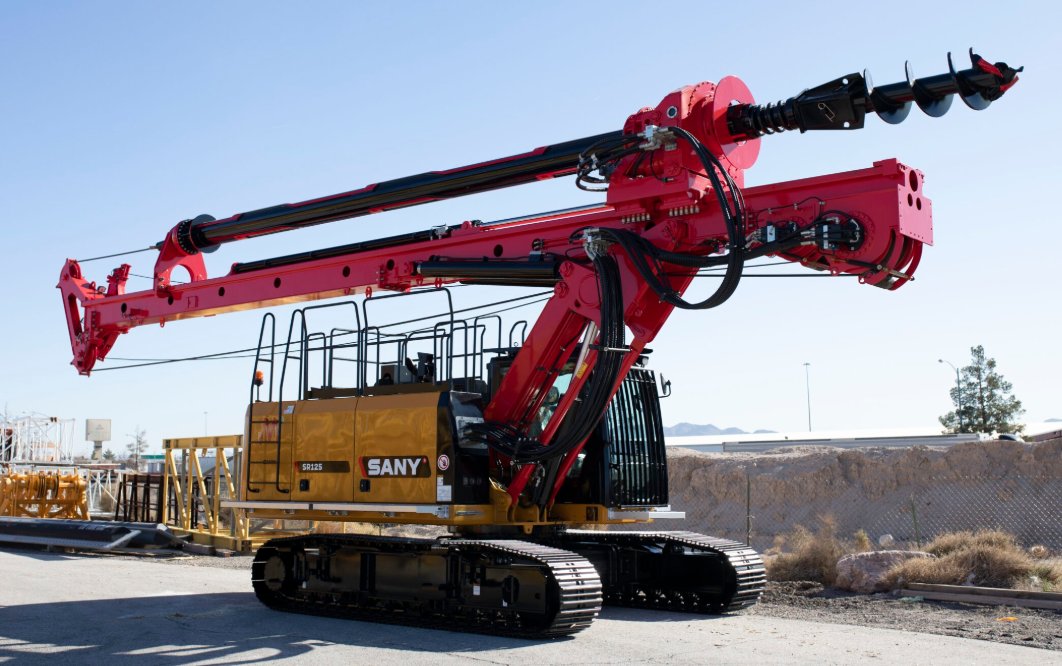

SR125MV

At 42.5 tons, the SANY SR125MV Drill Rig transports on a single truck at 43'10" long, 8'5" wide, and 11'4" high, and is ready to work when it arrives on site in South Jersey and Greater Philadelphia. Standard mode drills 4'11" diameter holes to 134'6" with a friction kelly bar or 101'8" with an inter-locking kelly bar, low headroom mode reaches 65'7" at a 31'6" overall height, and CFA mode drills 2'11" diameter holes to 70'7".

A 200 horsepower Cummins B4.5 engine delivers 95,883 lbf·ft of rated output torque at rotation speeds from 6 to 40 rpm. The main winch line speed of 253 ft/min and auto return to center get the rig back on the hole, and the cab has a 10.4" HD touchscreen display with automatic soil spin-off and shaking. Safety equipment includes blind side and backup cameras, cab protection screens, swing alert lights, and a high visibility cab and counterweight.

Every SANY SR125MV Drill Rig carries SANY's 1 year, 2,000 hour warranty.

Features

• 4'11" max drilling diameter

• 134'6"/101'8" max drilling depth

• 95,883 lbf·ft rated output torque

• 10.4" HD touchscreen display

• Transports in a single load

• Multi-functional drill rig

• Automatic soil spin-off and shaking

• Powerful Cummins engine

Come see the SANY SR125MV Drill Rig in person at our New Jersey Dealership in Pennsauken.

Contact us for rates and availability to rent, lease or buy.

Max Drilling Diameter

Max Drilling Depth

Rated Output Torque
