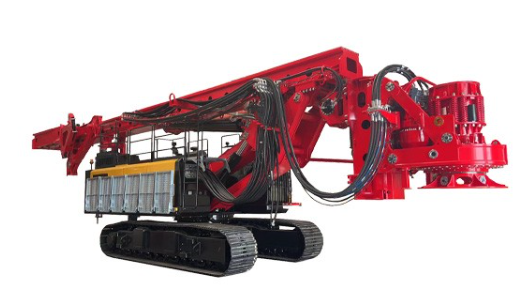

SR285MV

At 115.7 tons, the SANY SR285MV Drill Rig is set up for rock drilling across South Jersey and Greater Philadelphia, with a multi-speed rotary that adjusts to ground conditions and runs from 5 to 27 rpm. A 450 horsepower Cummins X12 engine delivers 210,205 lbf·ft of rated output torque.

Standard mode drills 7'2" diameter holes to 308' with a friction kelly bar or 200' with an inter-locking kelly bar, and CFA mode drills 3'11" diameter holes to 88'7". The 56'1" stroke and a main winch line speed of 230 ft/min keep the SR285MV moving on the hole, and a real-time display shows the kelly bar lock positions with the inter-locking kelly bar. Safety equipment includes a winch camera, blind side and backup cameras, cab protection screens, and swing alert lights. Transport takes three trucks, with a 60'1" transport length and 11'5" transport width, and assembly typically takes under a day.

Every SANY SR285MV Drill Rig carries SANY's 1 year, 2,000 hour warranty.

Features

• 7'2" max drilling diameter

• 308'/200' max drilling depth

• 210,205 lbf·ft rated output torque

• Multi-speed rotary adjustable to suit ground conditions, excelling at rock drilling

• Powerful Cummins X12 T4F

• 56' extra-long stroke, featuring fast winches

• Real-time display of the location of the kelly bar locks when using the inter-lock kelly bar

The SANY SR285MV Drill Rig is available for a walkthrough at our New Jersey Dealership in Pennsauken ahead of any purchase.

Contact us for rates and availability to rent, lease or buy.

Max Drilling Diameter

Max Drilling Depth

Rated Output Torque
